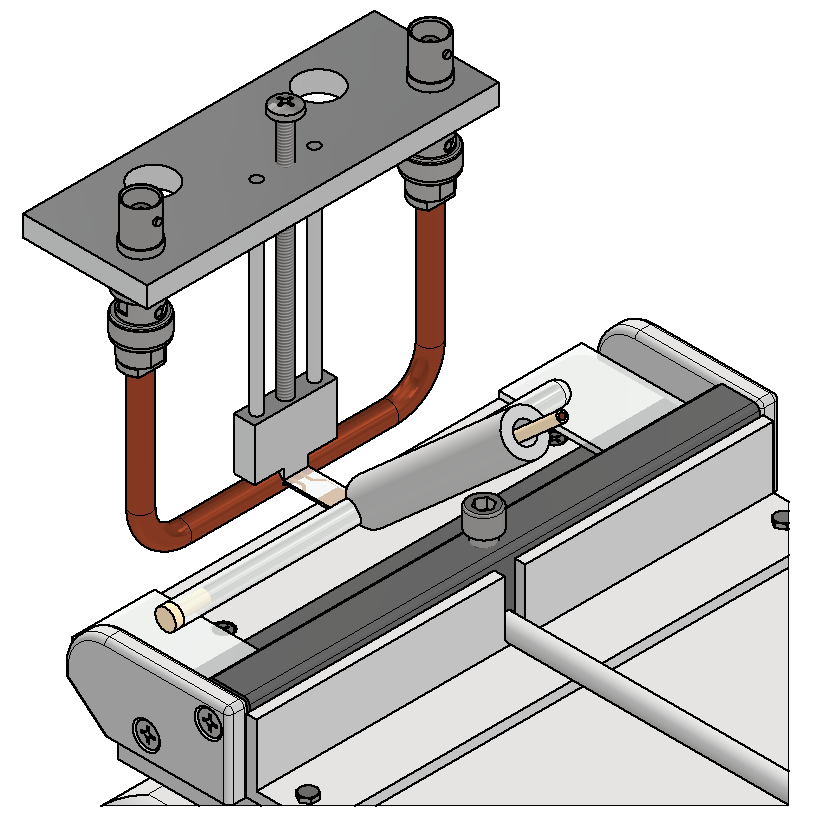

a. 3D rendering of fixture

b. Picture of fixture with ruler for scale

A fixture designed for measuring impedance/conductivity within my electrospinning setup. It utilizes a set screw to hold an interdigitated electrode in place and maintain an electrical connection. Noise and signal distortion was found to be low relative to the desired measurement range.
